AMPSEAL 23 Pin Connector

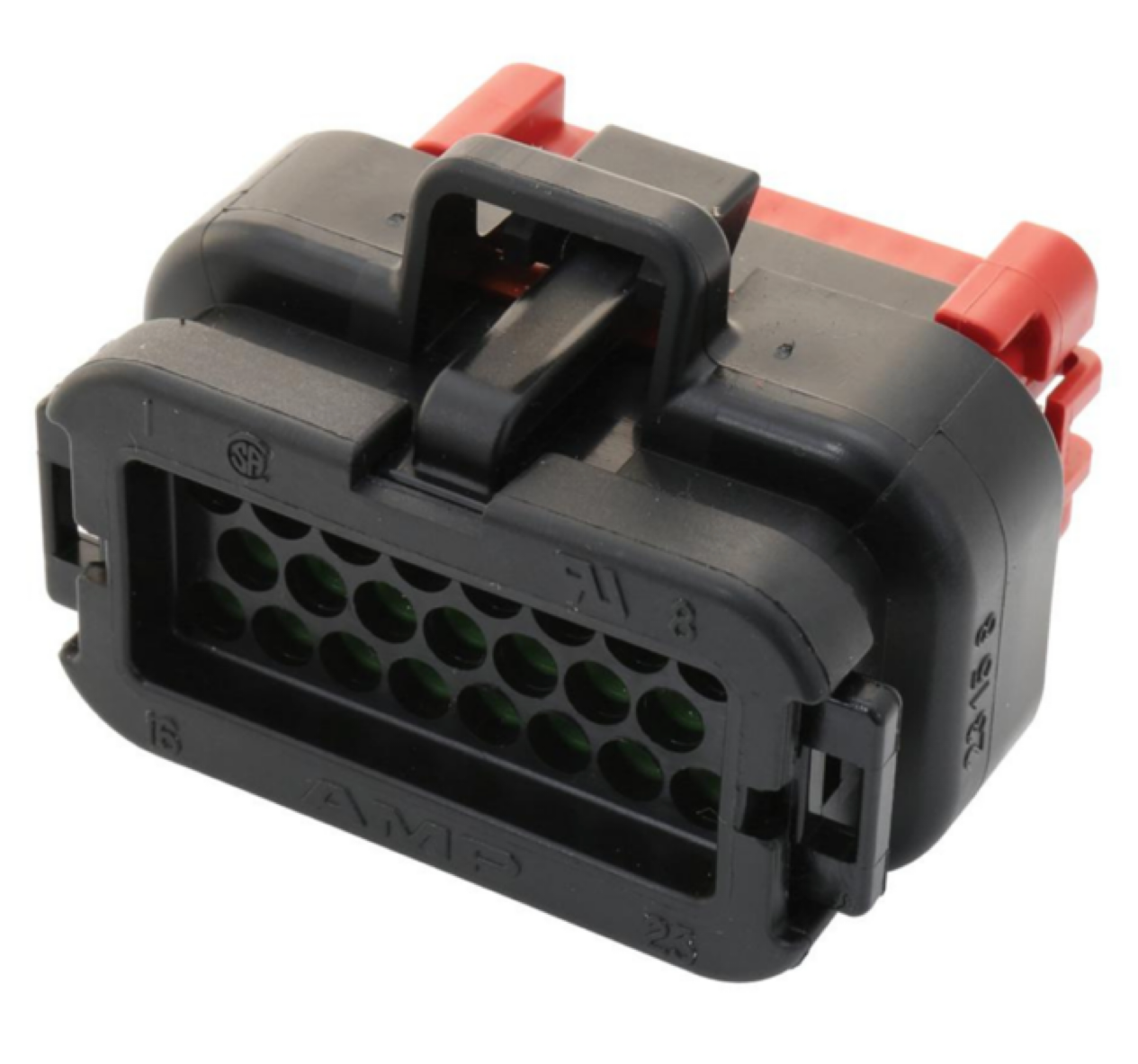

This is a genuine TE Connectivity AMPSEAL 23-pin connector (TE# 770680-1), trusted across the golf cart and EV industry for its durability, sealing, and long-term reliability.

Usage:

• Harness Repair / Replacement
  Fix damaged or melted connectors without replacing the entire harness
• Controller Swaps / Conversions
  Adapt your wiring to the 23-pin AMPSEAL connector
• Benchtop Diagnostics / Test Rigs
  Power up and communicate with your controller outside the vehicle

What's Included:

• 1 - TE Connectivity AMPSEAL 23-pin connector housing (TE# 770680-1)
• 15 - TE Connectivity female terminals for 16-20AWG wire size (TE# 770520-1)

Why only 15 pins?

We include 15 brand new female terminals (TE #770520-1), which is:

• More than enough for most controller configurations
• Leaves you with spare pins for mistakes or future use
• Keeps cost down without sacrificing functionality

Most setups do not require all 23 positions, making this the ideal balance.

Important Notes:

Installation requires proper crimping tools and basic wiring knowledge.
It is the buyer’s responsibility to ensure correct pinout and assembly. Always verify your connector style and pinout before ordering.

Technical Info:

Data Sheet - Download

Ampseal Connector Assembly Instructions
