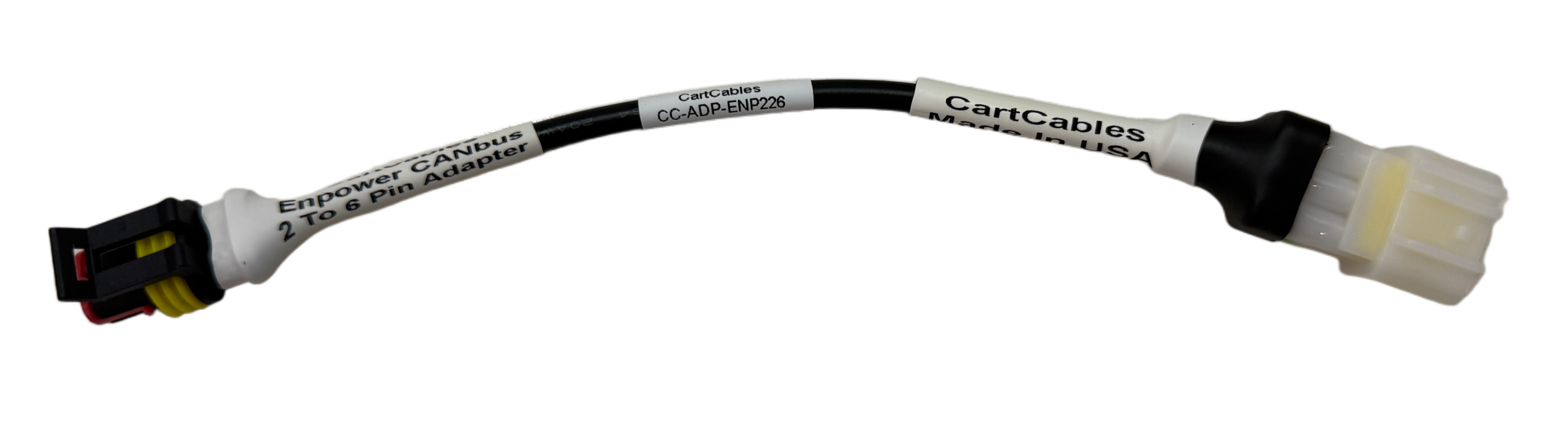

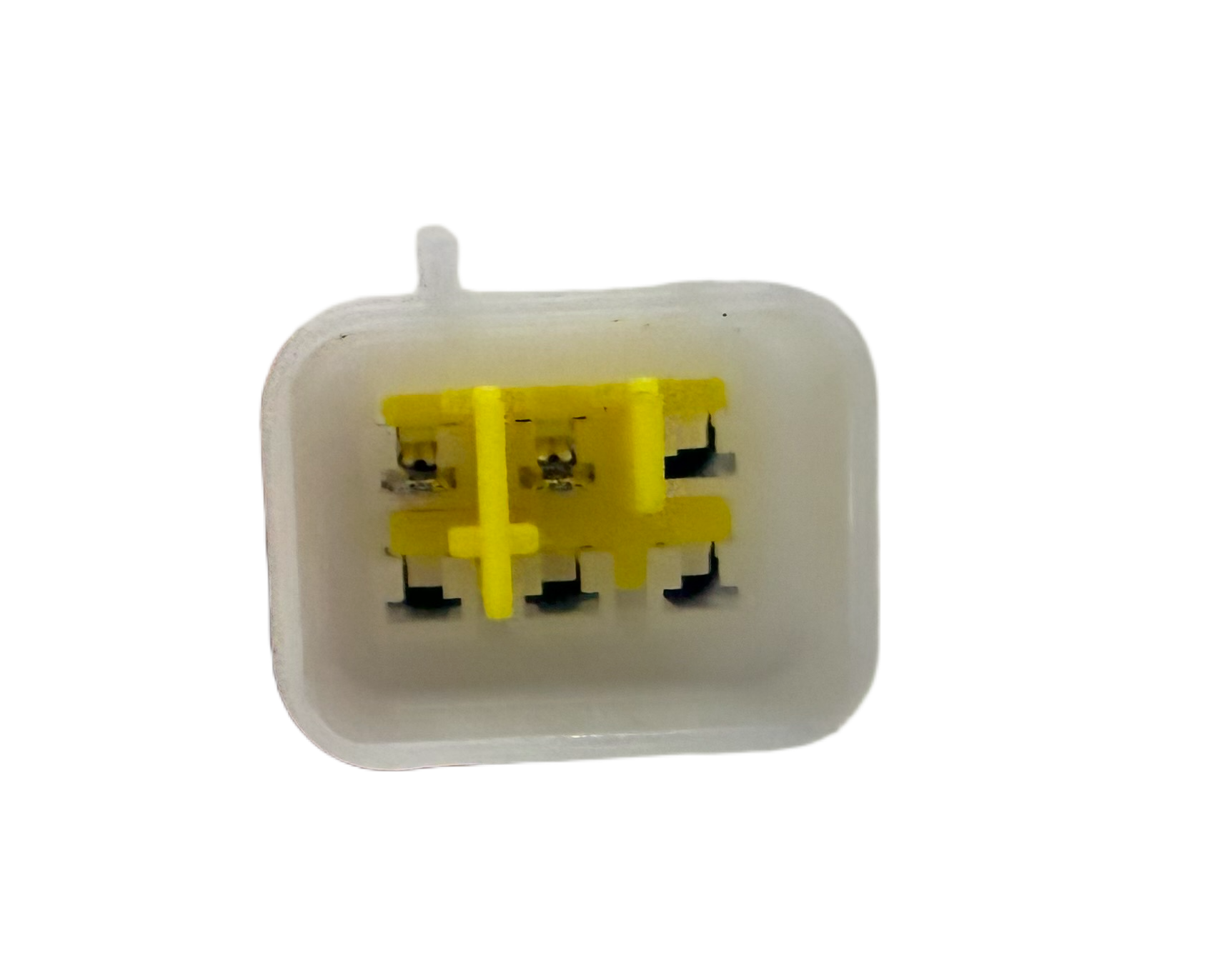

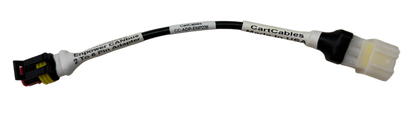

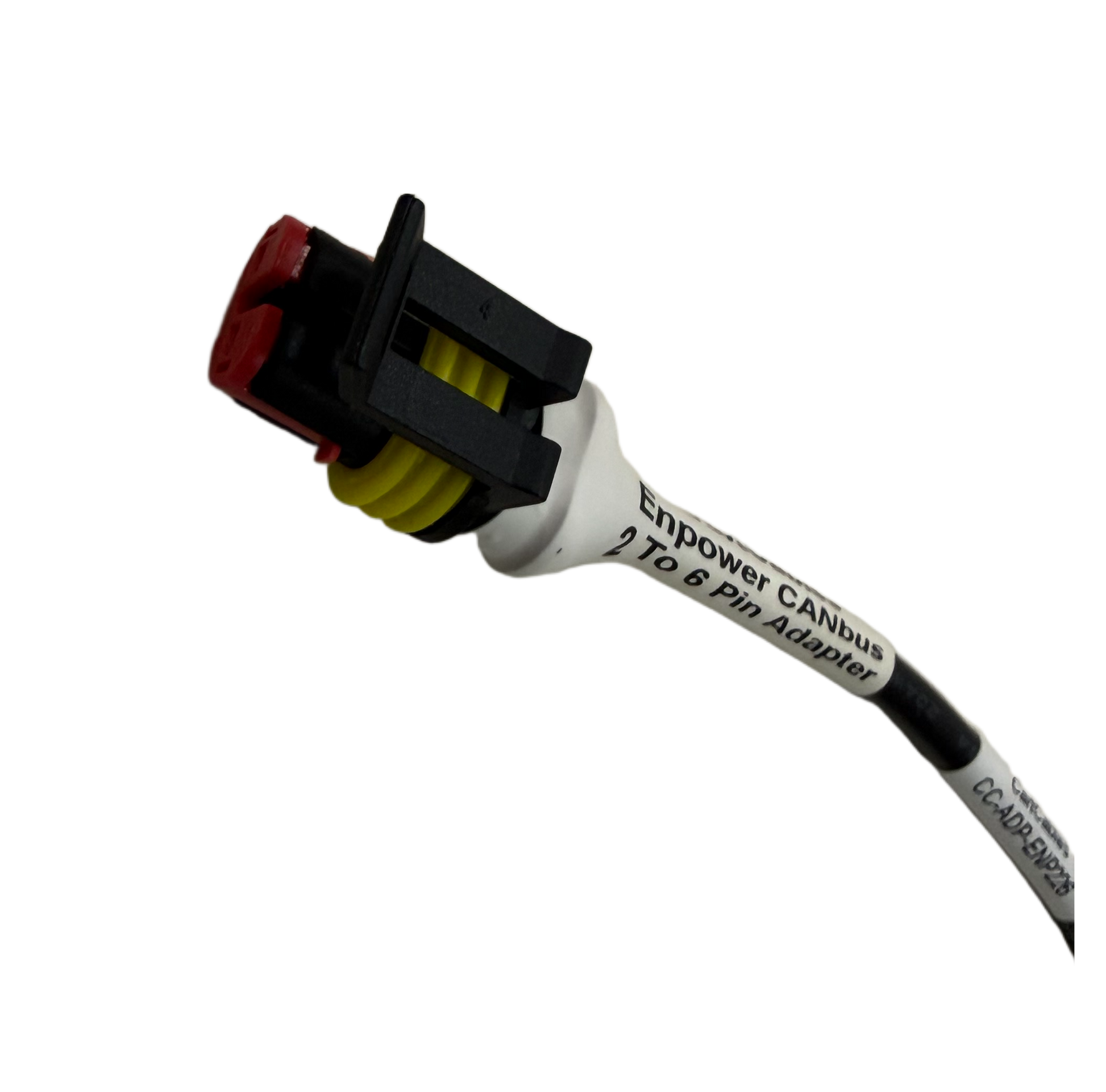

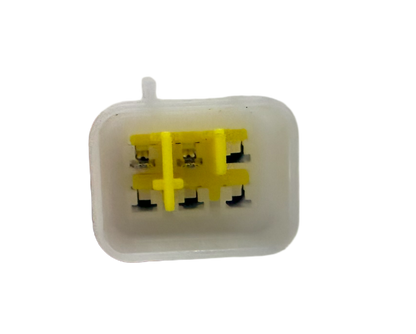

Adapter for 2-pin Enpower CANbus programming equipment to the 6-pin connector found on MC3526, MC3527, and MC3528 controllers.
Many of these controllers have had the serial programming ports disabled in the firmware, making the CANbus connection the only way to communicate.
This adapter allows you to connect your existing tuning equipment—whether you are using our CC-CBL-ENPWCB dongle with PC software or the Enpower handheld Bluetooth programmer—to controllers that do not have the standard 2-pin CANbus programming port and instead use a 6-pin connector for CANbus access.

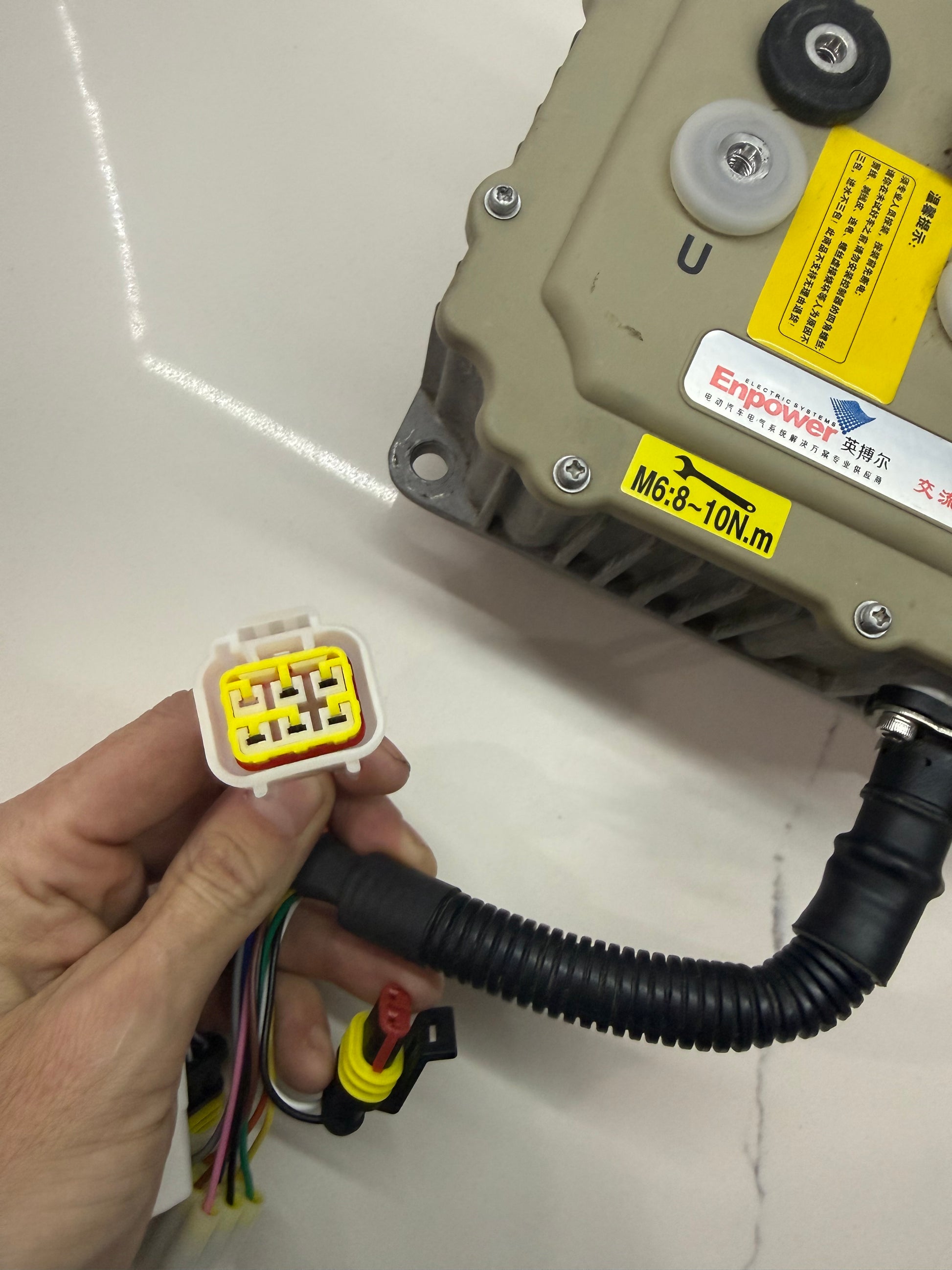

On some vehicles, the 6-pin connector may not be connected to anything. On others, it may already be plugged into a harness feeding the speedometer or another component. In that case, simply unplug the existing 6-pin connector, plug in this adapter, and then connect your programming equipment.
If your controller uses the 6-pin port, this adapter is required to interface with standard Enpower 2-pin CANbus programming tools.

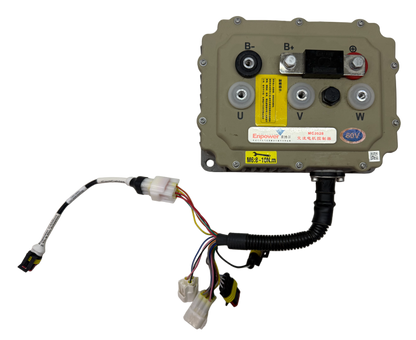

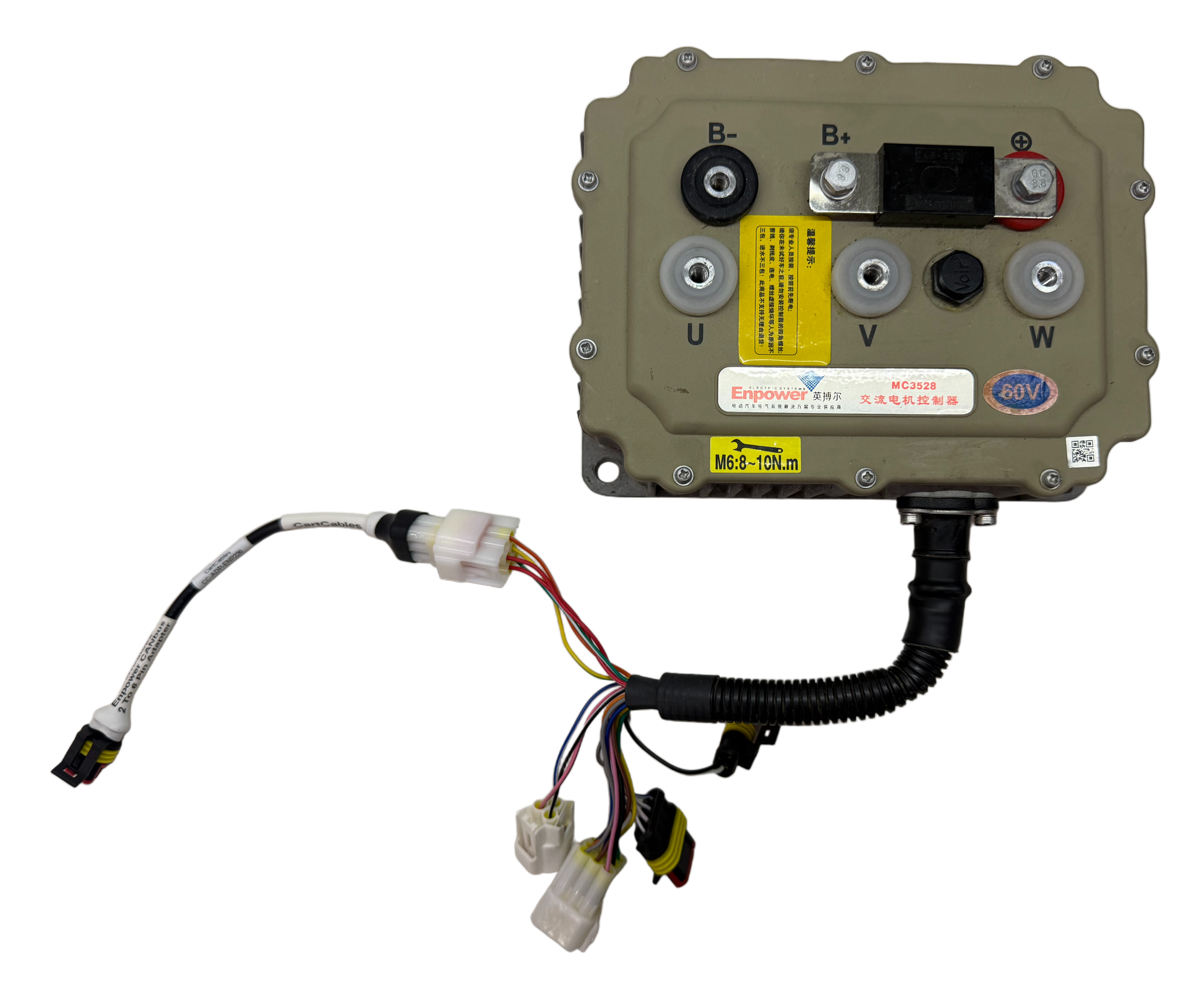

Important:Controller shown is for reference only and is not included.
